Cura1 Wireless PIR Sensor Beam Kit – Facility Use



The Cura1 Wireless iBeam kit is a crowd favourite.

Easily mountable and simple to install, the wireless PIR curtain sensor beam is the perfect addition to all  set-ups where the resident is a falls risk or may need to be monitored.

The iBeam and cordless monitor will send an alarm through to the nurse call system when it senses that someone has walked through a door way, or is attempting to get out of bed.

The clever swivel arm on the iBeam means you can position this device to be placed anywhere and an interconnecting cord from the cordless falls monitor into the bedside call point means this kit can be used as a stand alone system or integrated into the nurse call/call bell system.


Cura1 Cordless iBeam – Curtain PIR Sensor Beam

The iBeam wireless Curtain PIR fits to the wall beside the bedhead or across a door way in a purpose-built swivel wall mount bracket. The iBeam is easy to install and can be moved from room to room with ease.

On / Off switch to conserve battery life when not in use. Low battery indicator. Works with other cura1 cordless devices. Accepts plug pack (optional).

Technical Specifications:

  • Detection range: 5m (approx*)
  • Wireless range: 30m*
  • Power supply: 6-12V DC, 300mA &/or 3 x AA alkaline batteries.
  • Battery life: 6 months with normal usage
  • Housing material: ABS plastic
  • Dimensions (HxWxD): 78mm x 81.5mm x 38.5mm (includesbracket)
  • Weight: 100g (not incl. batteries)
  • Operating temp: -25°C to 55°C
  • Relative humidity: <85%
  • Standby current consumption: 1mA
  • Alarm condition current consumption: 20mA
  • Operating frequency: 433Mhz (TX) (Not supervised)
  • Transmission strength: < 10mW

Cura1 Wireless Monitor

The Cura1 Wireless Monitor has the ability to monitor up to 5 cordless pad/ mats or other Cura1 cordless transmitters.

This monitor can be powered by 3 X AA batteries or plug-pack.

The CBM is a universal dual controller whereby it suits wireless bed, floor and chair sensors and has an adjustable audible alert.

The mobile capability allows for a carer to take the CBM on routine jobs or leave stationary at a nursing station within a 20-30m radius of the pads.

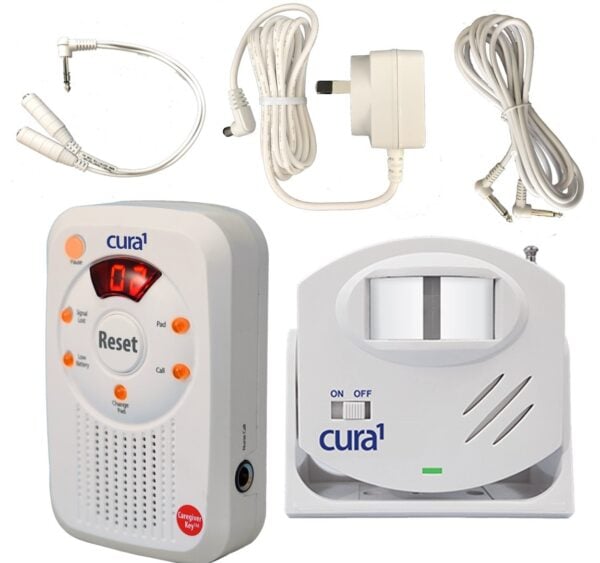

Kit Contains:

1 x Cura1 Cordless falls monitor

1 x Cura1 Wireless iBeam

1 x Double Adaptor

1 x Male to Male ‘G-Cord’

1 x Power Pack
