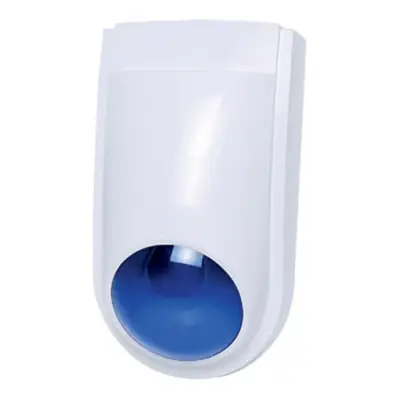

Siren with Strobe – Blue

Description

The Siren with Strobe – Blue is an all-in-one alert module designed to integrate seamlessly with disabled toilet alarm systems. It replaces the standard overdoor light and piezo buzzer with a powerful 15 W siren (110 dB at 50 cm) and a bright blue LED strobe (up to 90 flashes per minute), ensuring that emergencies are signaled both visually and audibly.

Constructed from rugged ABS/AS/PC plastic and sealed for long-term reliability, this unit operates on DC 6–15 V, making it compatible with the 12 V power supplies commonly used in toilet alarm installations. Separate inputs for the siren and strobe allow you to customise how each is triggered—ideal for scenarios where you want a silent visual cue only, or both sound and light together. Whether mounted inside or outside the facility, its impressive sound pressure level and vivid strobe make sure help is noticed quickly.

Compact yet robust, the Siren with Strobe – Blue delivers a comprehensive alert solution that enhances safety, meets accessibility standards, and provides peace of mind in healthcare, aged-care, and public facilities.

Siren with Strobe – Blue – Specifications

• Dimensions: 112 mm (W) × 200 mm (L) × 70 mm (H)

• Power: 15 W

• Rated Voltage: 12 V DC

• Working Voltage: 6–15 V DC

• Piezo Siren:

  • Current: 150 mA

  • Frequency: 2.3–4.3 kHz

  • Sound Output: 1 tone, 110 dB (at 50 cm)

• LED Strobe:

  • Source: LEDs

  • Current: 50 mA

  • Flash Rate: 70–90 flashes/minute

• Inputs: Separate terminals for siren and strobe activation

• Housing Material: ABS/AS/PC plastic

• Lens Colour: Blue

• Mounting: Four screw holes (across mounting bracket)

• Protection & Compliance: Sealed design for indoor/outdoor use; specifications subject to change without notice
