Red Mushroom Head Push Button

Description

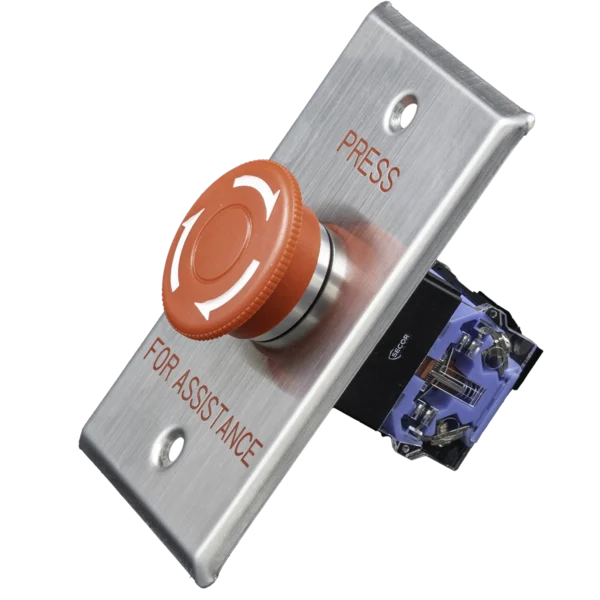

Introducing the Red Mushroom Head Push Button – a sophisticated emergency alert device designed to work seamlessly with your disabled toilet alarm system. Featuring a twist-to-release mechanism and a robust latching action, this push button is built for reliability and ease of use. Its striking red mushroom head is mounted on a curved stainless steel plate, providing both durability and an attractive finish. The plate is engraved with “PRESS FOR ASSISTANCE” in bold red, offering clear instructions during critical moments.

Designed for intuitive operation, simply press the button to activate the alarm and twist to cancel it. With compact dimensions of 115 mm in height, 70 mm in width, and 50 mm in depth, this push button is an ideal additional call point that complements your existing system. Backed by a 12‑month warranty, it delivers dependable performance and enhanced safety in any environment.

Red Mushroom Head Push Button Specifications

• Mushroom Head: 40 mm diameter

• Switch Type: Twist-to-Release Button

• Button Colour: Red

• Button Type: Mushroom Head

• Plate Type: On Curved Edge

• Plate Style: Standard

• Plate Material: Stainless Steel GPO Plate

• Engraved Text: “ASSISTANCE”

• Text Colour: Red

• Switch Action: Latching (push to activate the alarm, twist to cancel the alarm)

• Electrical Specifications:

  • Current (Max): 10A/24VDC

  • Current (Min): 5mA

  • Contact Resistance: ≤50 mΩ

  • Insulation Resistance: >100 MΩ

  • Contacts: 1 x NO (Normally Open) and 1 x NC (Normally Closed), isolated

• Dimensions:

  • Width: 70 mm

  • Height: 115 mm

  • Depth: 50 mm

• Operating Temperature: -25℃ to 55℃

• Warranty: 12 Months
