Cura¹ Incontinence Detection Bed Sensor Kit

Description

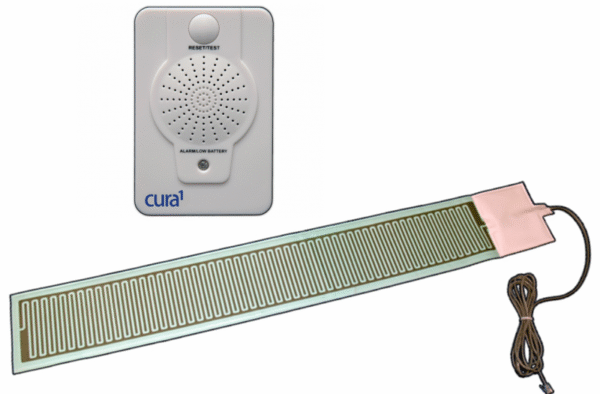

Kit Contains:

1 x  incontinence bed pad – 30 day use (including connecting cord)

1 x incontinence monitor

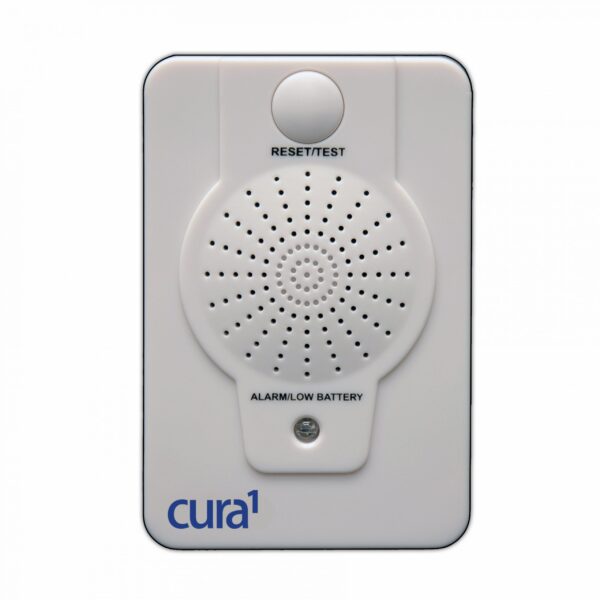

Incontinence Monitor Technical Specifications:

• DC operation using either 3 x AAA batteries or 6V plug pack
• Dimensions 70 x 105 x 40mm durable ABS plastic enclosure
• Weight 115g without batteries
• 3 selectable alarm tones
• Alarm mute switch
• 3 delay options 0 sec / 1 sec / 2 sec
• Volt free normally open relay contact alarm output
• RJ10 type socket for wired incontinence connection
• Low battery detection and indication 3.3Vdc trigger point


  Features:

  • Simple operation and maintenance
  • Works with all Economy Incontinence Pads
  • Red LED visual alarm indicator
  • 3 x AAA battery operated or optional 6V external plug pack
  • 3 selectable alarm tones
  • Can be connected to a nurse call system
  • Adjustable alarm volume
  • Front panel reset / self test button
  • “Low Battery” audible alarm & red LED visual warning
  • Selectable delay options 0 sec / 1 sec / 2 sec
  • Comes complete with mounting strap

Incontinence Bed Pad Technical Specifications:

• Dimensions 750 x 100mm
• 30 days life expectancy
• 2m cable
• RJ10 connector for monitor


  Features:

  • Made from soft non-allergenic PVC
  • Reusable & easy to clean
  • For use with Economy Incontinence Monitor
  • Vent holes in the neck reduce risk of moisture ingress
  • Instructions for hygiene & use printed on pad
  • Single patient use is recommended
  • Made from soft non-allergenic PVC
  • Reusable & easy to clean
  • For use with Economy Incontinence Monitor
  • Vent holes in the neck reduce risk of moisture ingress
  • Instructions for hygiene & use printed on pad
  • Single patient use is recommended
