Green Mushroom Push Button

Description

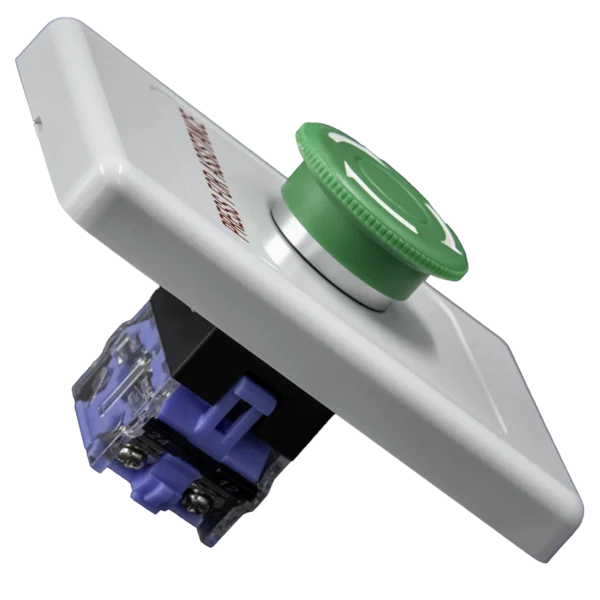

The Green Mushroom Push Button offers a convenient and accessible way to activate and cancel a disabled toilet alarm. Simply push the button to trigger the alarm and twist to release, instantly canceling the alert. Its robust, latching design and distinctive mushroom head ensure clear visibility and easy operation, while the engraved “PRESS FOR ASSISTANCE” text in red helps guide users in emergencies.

Measuring 117 mm in height and 76 mm in both width and depth, it seamlessly integrates into existing installations. Although the Green Mushroom Push Button enhances accessibility, it is intended as a supplementary device; the primary call button remains essential for housing the main circuitry and cancel functionality. This added call point is perfect for placement near the toilet, providing an extra alert option when a higher-level assist alarm is needed. Backed by a 12‑month warranty, this product exemplifies our commitment to quality and reliable performance within your disabled toilet alarm system. ​

Green Mushroom Push Button Specifications

• Switch Type: Twist-to-Release

• Button Colour: Green

• Button Type: Mushroom Head

• Plate Style: Standard

• Plate Material: Plastic Plate

• Engraved Text: “PRESS FOR ASSISTANCE”

• Text Colour: Red

• Switch Action: Latching

• Dimensions:

  • Height: 117 mm

  • Width: 76 mm

  • Depth: 76 mm

• Warranty: 12 Months

• Operating Temperature: –25 °C to +55 °C (no freezing)

• Operating Humidity: 45 % to 85 % RH (no condensation)

• Contact Resistance: ≤ 50 mΩ

• Insulation Resistance: ≥ 100 MΩ

• Dielectric Strength: 2000 VAC, 50 Hz

• Impulse Withstanding: 3000 V (amplitude: 1.0 mm p-p)

• Shock Resistance: ≥ 10 g

• Terminal: Thread connection, diameter of welded wire up to 2 × 1.5 mm; connecting link: 6.3 × 0.8 mm
