Cura1 Crash Mat Monitor – In-Home Care – 4017



The Cura1 Crash Mat monitor (4017) is a “hardwired Monitor”, meaning that your crash mat will plug into the monitor VIA the 2m breakcord supplied with the crash mat. From this monitor you will be audibly alerted that the resident or loved one has fallen out of bed.




Cura1 Crash Mat Monitor


Cura1 Crash Mat Monitor Details:

  • Simple operation and maintenance
  • Works with all Economy Bed / Chair Pads & Floor Mats
  • Auto re-arm after alarm activation Red LED visual alarm indicator
  • 3 x AAA battery operated or optional 6 V external plug pack
  • 3 selectable alarm tones
  • Can be connected to a nurse call system
  • Adjustable alarm volume
  • Front panel reset / self test button
  • “Low Battery” audible alarm & blue LED visual warning
  • Selectable delay options 0 sec / 1 sec / 2 sec

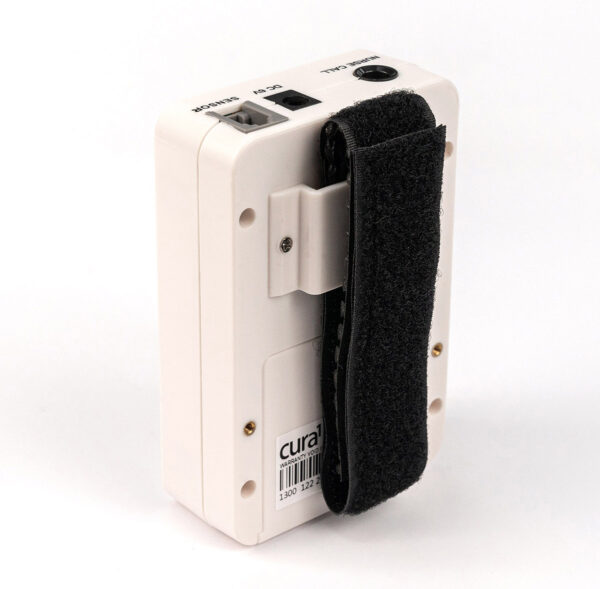

  • Comes complete with mounting strap

Technical Specifications:


  • DC operation using either a 3 x AAA batteries (supplied) or 6V plug pack
  • Dimensions 70 x 105 x 40 mm durable ABS plastic enclosure
  • Weight 115 g without batteries
  • 3 selectable alarm tones
  • Alarm mute switch
  • Volt free normally open relay contact alarm output
  • RJ10 type socket for wired bed / chair pad & floor mat connection
  • Low battery detection and indication 3.3 Vdc trigger point


Cura1 Crash Mat with Sensor sold separately, click here.
